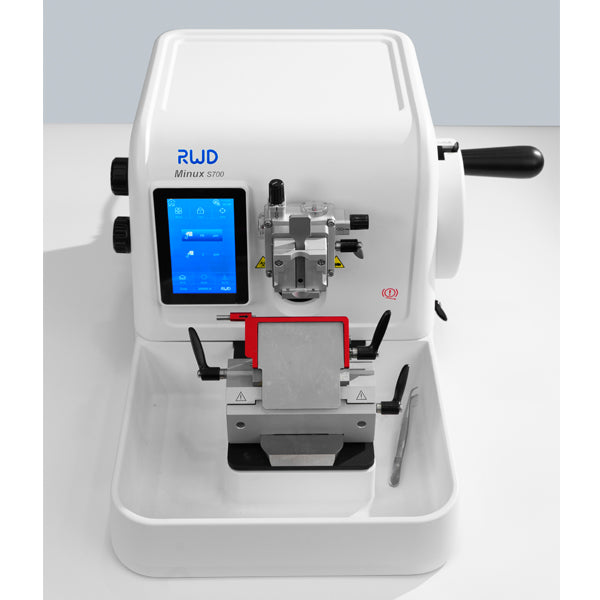

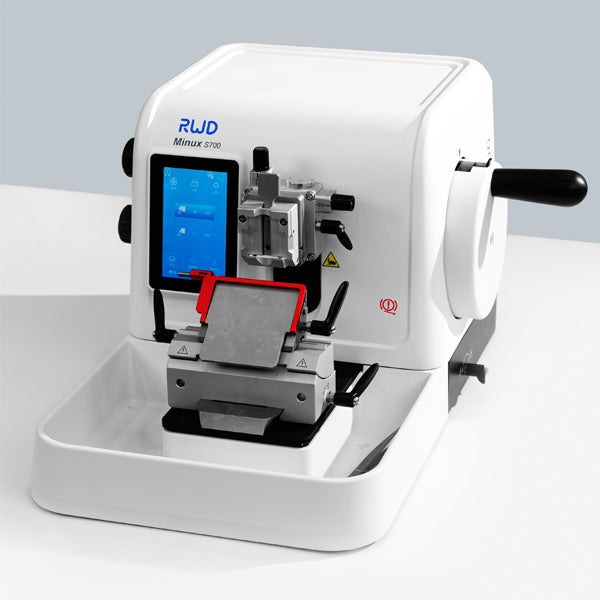

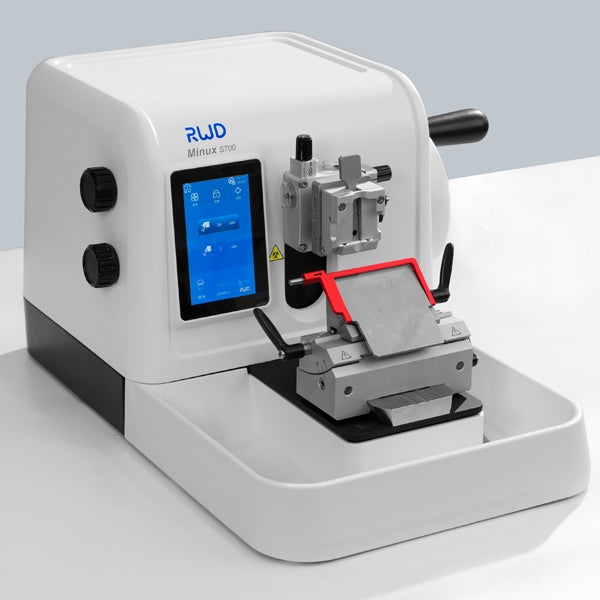

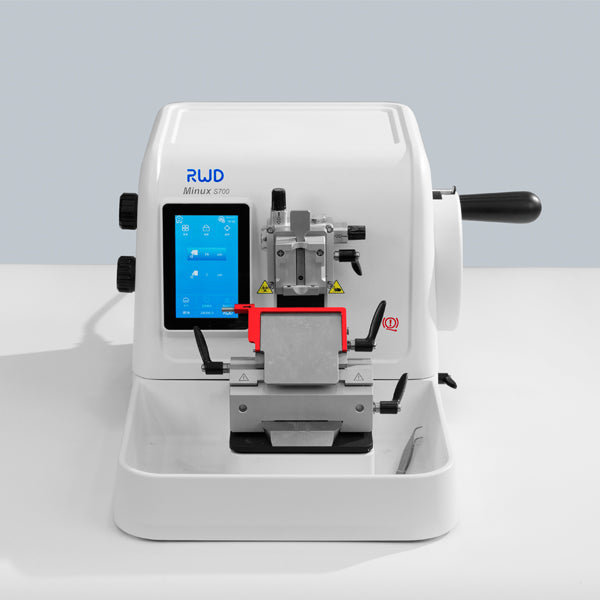

Minux® S700 Rotary Microtome

Built upon market-leading microtome design, S700 Paraffin Rotary Microtome enables you to cut sections precisely, safely and superior easy-operationally. It displays extraordinary ergonomic characteristics for comfortable operation. It is a semi-automatic model, more in line with your slicing habits.

If working with delicate specimens (example being brain samples) the system will provide reproducible, thin, serial sections of maximum quality time and again. Unique side specimen knob and visual pointer design make specimen advance and retraction more precision. Handwheel double lock system and knife ejector and guard enhance safety.

Application field: Histopathology/Anatomical Pathology

Technical Specifications

Features&Benefits

Accurate

• Precise sampling:Cross roller bearings and Spindle imported from Germany, combined with a five-phase high-resolution Stepper motor and a Link block made of aviation aluminum, form a high-precision sampling system to ensure slice quality.
• Accurate positioning: Patented technology pointer identification, the sample angle can be adjusted visually, and the positioning is more accurate; the knife holder has a small lateral displacement and high accuracy. The base has a scale, which is convenient for the knife holder to locate and improve the quality of slices.

Safety

•  Operator safety: The handwheel dual locking system comes with a lock prompt sound, and is equipped with a knife ejector and a knife guard, so that the user can safely replace the sample and blade.

Intelligent

• Information tracking: 5-inch touch screen, history recording system, easy to trace back information and quickly solve problems

 Convenient

• Convenient operation: German military-grade side injection knob conforms to ergonomic design, and the operation is more comfortable and coordinated.
• Convenient maintenance: special material waste tank, non-wax, easy to clean

Technical Parameters

※Semi-automatic operation, motorized injection, manual sectioning.

Section thickness range：0.5 – 100 µm

• 0.5 – 5.0 µm in 0.5µm increments
• 5- 20µm in 1µm increments
• 20 – 30 µm in 2µm increments
• 30- 60 µm in 5µm increments
• 60- 100µm in 10µm increments

Trimming section thickness range：1 – 800 µm

• 1- 10µm in 1µm increments
• 10- 20µm in 2µm increments
• 20- 50µm in 5µm increments
• 50- 100µm in 10µm increments
• 100- 800µm in 50µm increments

Specimen retraction：0-250μm ajustable

Specimen Feed：28mm

Vertical Stroke：70mm

 Maximum sample size：standard specimen clamp，55×50×30mm

Specimen orientation：X axis/Y axis8°，Z axis 360°

Horizontal feed speed：1800µm/s

※Sample positioning function,patented visual pointer identification,keep samples at the same angle and achieve accurate sample positioning.

※The 5-inch touch screen is easy to operate. Stylish and simple operation interface,easy to learn and understand.

※The side sampling knob is ergonomically designed to make operation more comfortable. The half-knife repair function simplifies the operation process, save time and effort.

Handwheel dual lock system, lock the handwheel at any position. Knife guarding and retracting device, emergency stop button, multiply enhance the protection of the operator.

Sample position memory function, one-click reset, improve sectioning efficiency.

 Audible and visual alarm when the horizontal sampling stroke is 1mm remaining.

The historical record system can query the equipment usage and facilitate information tracking.

Semi-Auto VS Fully-Auto

Model information

S700 Rotary Microtome Configuration
